| Total length of equipment | 5500mm | Width | 11000mm | Height | 1200mm |
| Material width | 1000mm or customized | Effective width | 300mm |
| Power | Motor power：7.5KW；Hydraulic power：4KW | Working voltage | 3P380V50HZ |
| Productivity | 8-12m/min |
| Weight | About 5T |
| Transmission type | Chain |
| Under frame | 45#steel Chrome Plated |

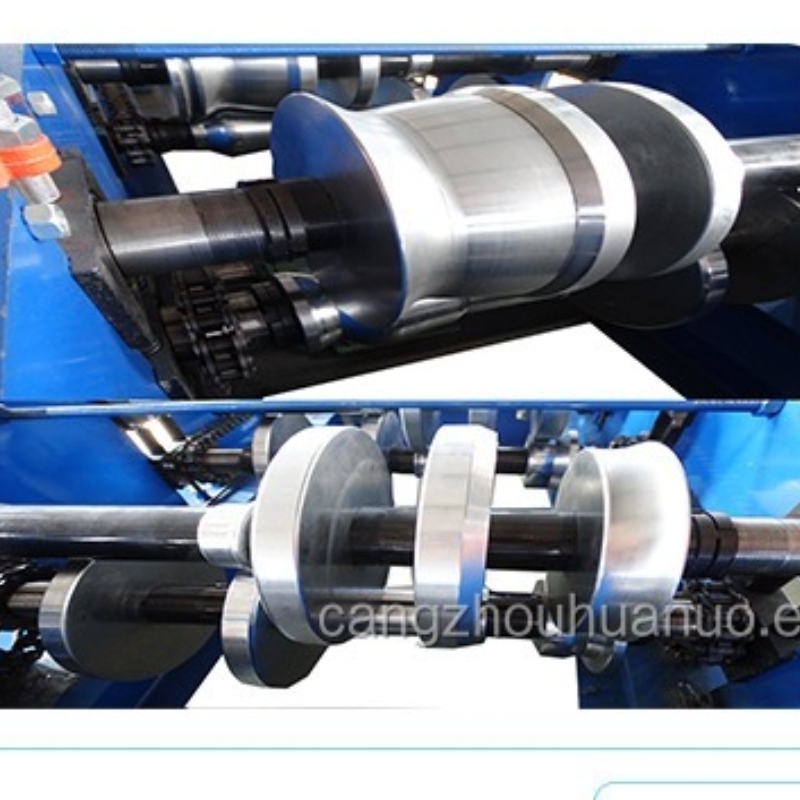

| Shaft | 8-15rows layer,Diameter 75-85mm |
| Connecting plate | 14mm |
| Spacer sleeve | Using galvanized pipes for precision processing and electrostatic spraying |
| Roller material | Ordinary |
| Control system | PLC brand：Delta ； Frequency brand：Delta ； Operation brand：Delta |
| Cutting type | Guide pillar shear |
| Thickness of sheet | 0.3-0.8mm |
| Warranty period | 12 months, lifelong maintenance |
Free 3D profile drawing and installation profiles can be supplied.
Exclusive VIP customer files.
The urgent order with 100% full payment has the priority of delivery.
