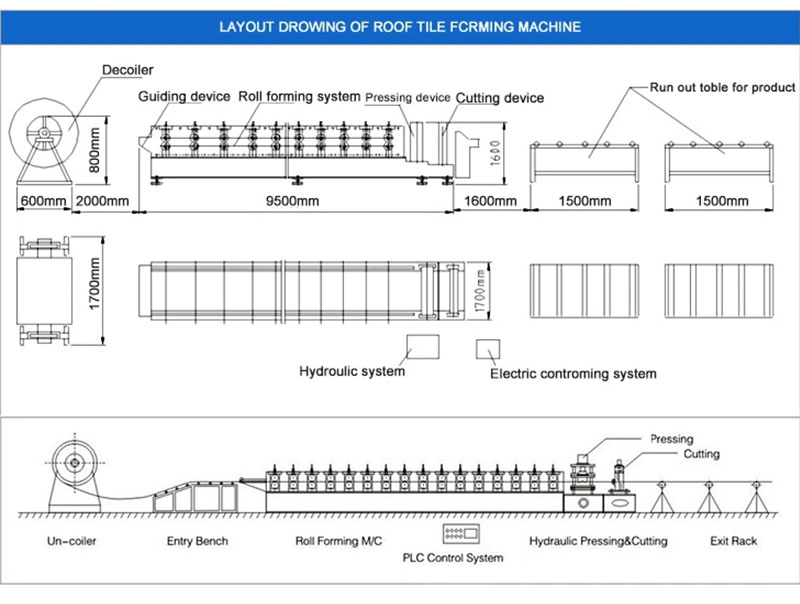

| Total length of equipment | 5100mm | Width | 1700mm | Height | 1500mm |
| Material width | 1000mm or customized | Effective width | 800-850mm | ||
| Power | Motor power：3KW；Hydraulic power：3KW | Working voltage | 3P380V50HZ | ||
| Productivity | 0-20m/min | ||||
| Weight | About 4.5T | ||||
| Transmission type | Chain | ||||
| Under frame | 250H-beam | ||||
| Shaft | 11-16rows layer,Diameter 70 mm | ||||
| Connecting plate | 14mm | ||||
| Spacer sleeve | Using galvanized pipes for precision processing and electrostatic spraying | ||||

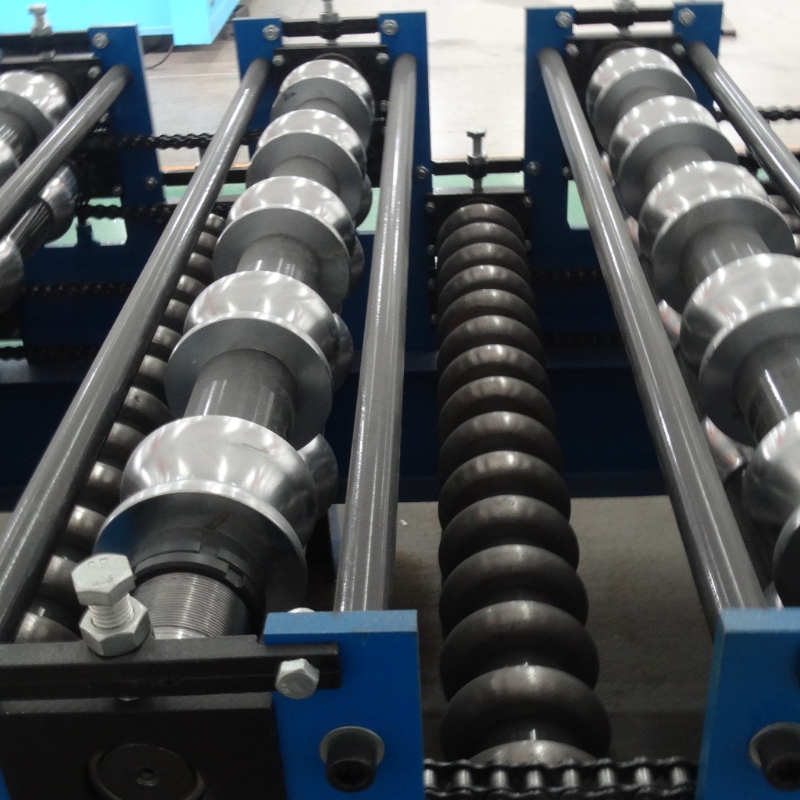

| Roller material | Ordinary | ||||
| Control system | Frequency brand：Delta； Operation brand：Delta | ||||

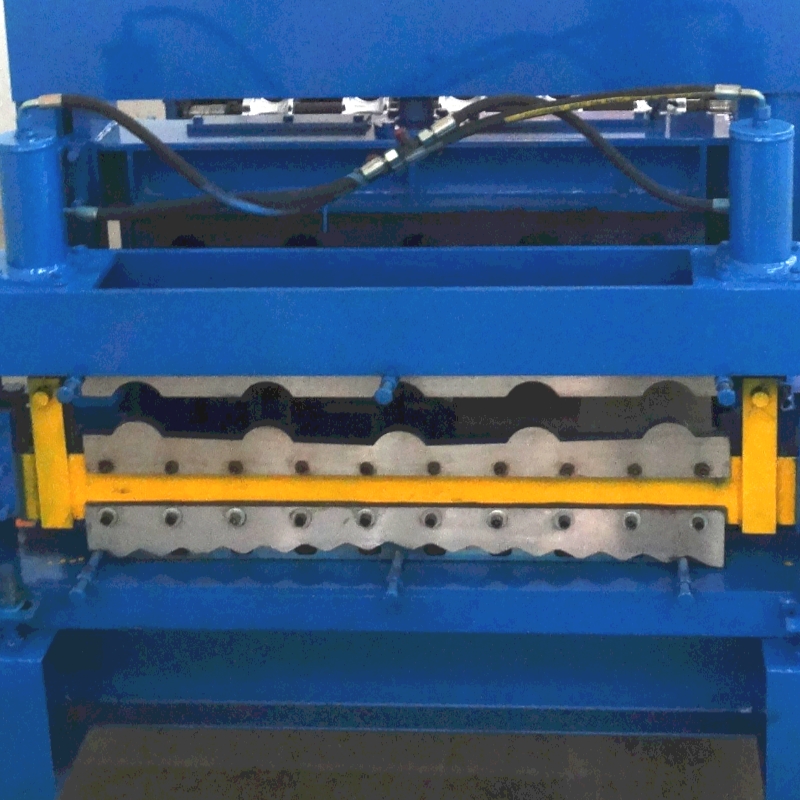

| Cutting type | Slipway Shear | ||||
| Thickness of sheet | 0.3-0.8mm | ||||
| Warranty period | 12 months, lifelong maintenance | ||||
