| Total length of equipment | 5300mm | Width | 1700mm | Height | 1500mm |
| Material width | 1000mm or customized | Effective width | 840-900mm |
| Power | Motor power：5.5KW；Hydraulic power：5.5KW | Working voltage | 3P380V50HZ |
| Productivity | 0-20m/min |
| Weight | About 4T |
| Transmission type | Chain |
| Under frame | 300H-beam |
| Shaft | 9-11rows layer,Diameter 70 mm |
| Connecting plate | 14mm |
| Spacer sleeve | Using galvanized pipes for precision processing and electrostatic spraying |
| Roller material | Ordinary |
| Control system | PLC brand：XinJie； Frequency brand：ZONCN ； Operation brand：Kunlun |
| Cutting type | Guide pillar shear |
| Thickness of sheet | 0.3-0.8mm |
| Warranty period | 12 months, lifelong maintenance |

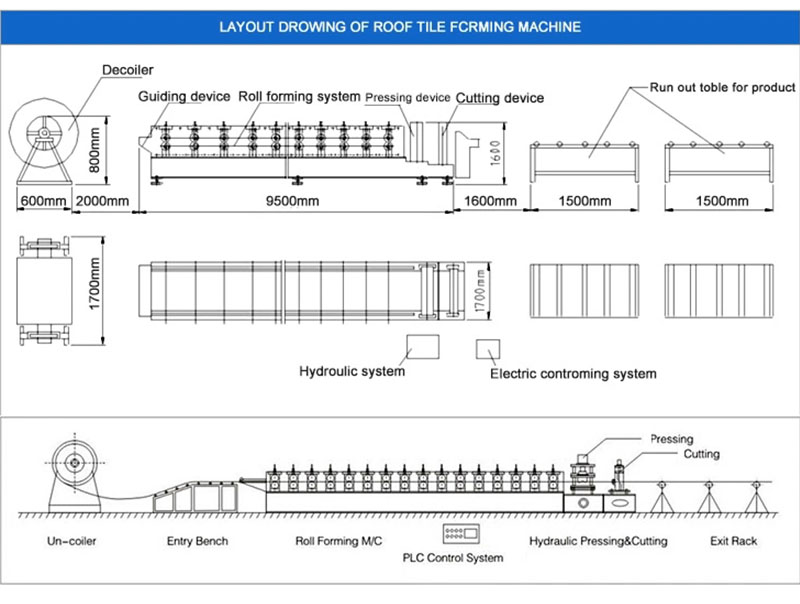

Free 3D profile drawing and installation profiles can be supplied.
Exclusive VIP customer files.
The urgent order with 100% full payment has the priority of delivery.
