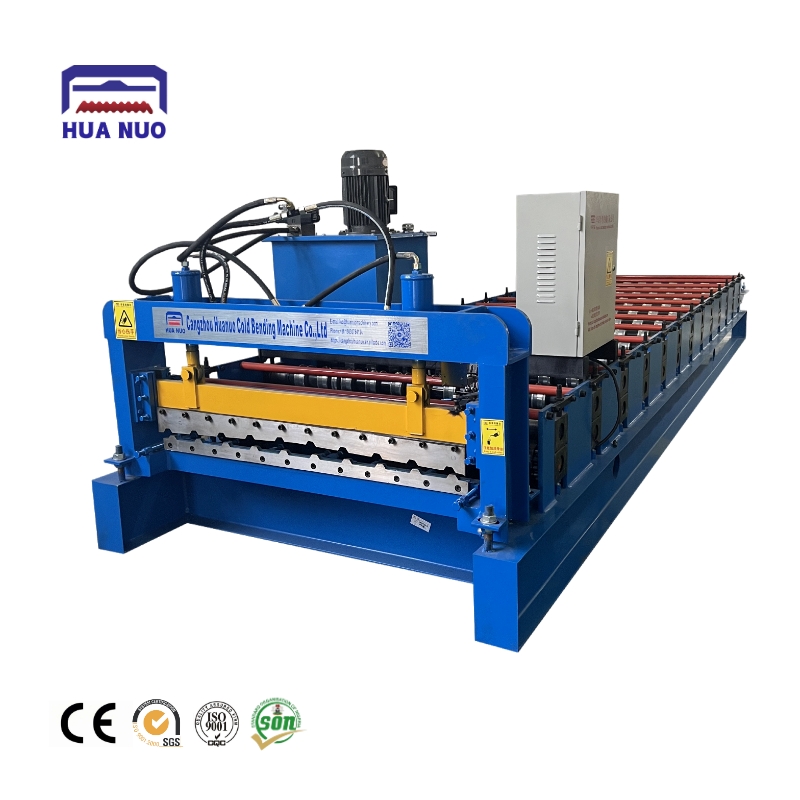

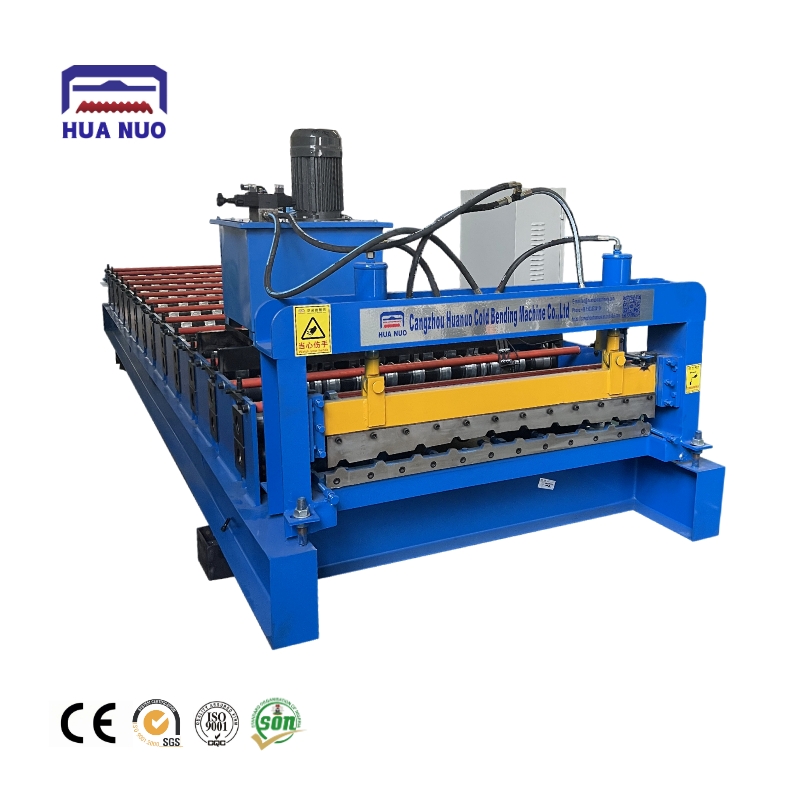

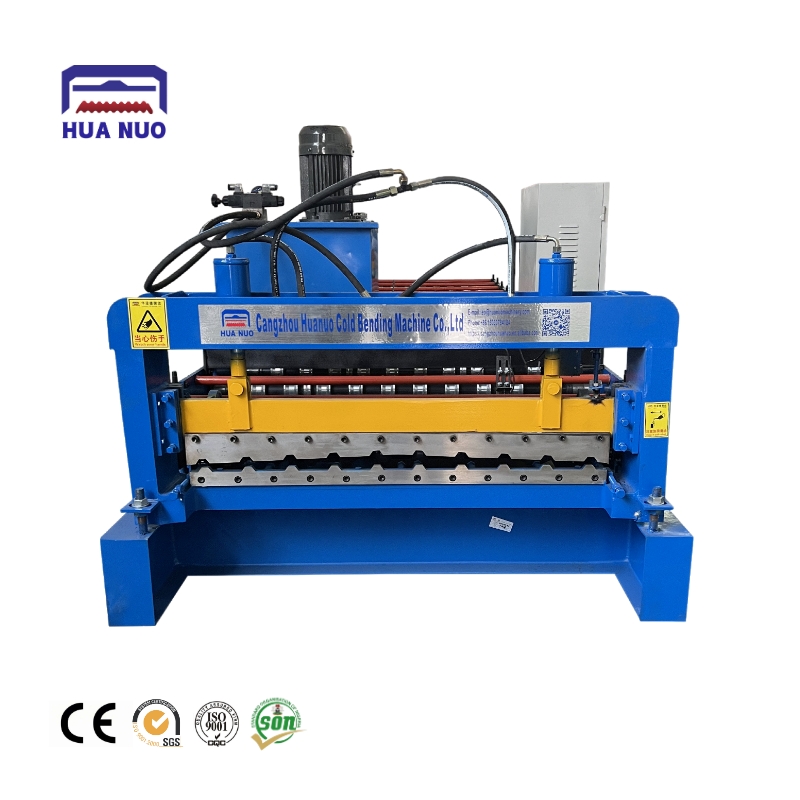

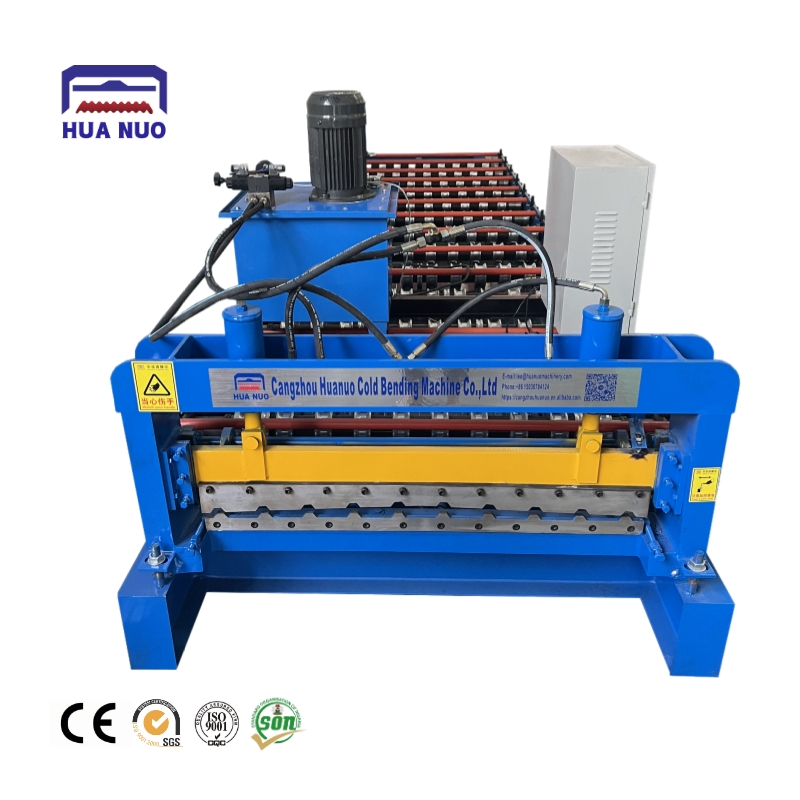

1250*1070 Single Layer Roll Forming Machine
- PRODUCT DETAIL
| Total length of equipment | 6050mm | Width | 1700mm | Height | 1200mm |
| Material width | 1250mm or customized | Effective width | 1070 mm | ||
| Power | Motor power：3KW；Hydraulic power：3KW | Working voltage | 3P380V50HZ | ||
| Productivity | 0-20m/min | ||||
| Weight | About 3T | ||||
| Transmission type | Chain | ||||
| Under frame | 250H-beam | ||||
| Shaft | 13rows layer,Diameter 70 mm | ||||
| Connecting plate | 14mm | ||||
| Spacer sleeve | Using galvanized pipes for precision processing and electrostatic spraying | ||||
| Roller material | Ordinary | ||||
| Control system | General electric cabinet | ||||
| Cutting type | Slipway shear | ||||
| Thickness of sheet | 0.3-0.8mm | ||||
| Warranty period | 12 months, lifelong maintenance | ||||
Free 3D profile drawing and installation profiles can be supplied.
Exclusive VIP customer files.
The urgent order with 100% full payment has the priority of delivery.
