| Total length of equipment | 15000mm | Width | 1700mm | Height | 1200mm |
| Material width | 1250mm or customized | Effective width | 914mm | ||
| Power | Motor power：15KW*2；Hydraulic power：5.5KW | Working voltage | 3P380V50HZ | ||
| Productivity | 0-15m/min | ||||
| Weight | About 14T | ||||

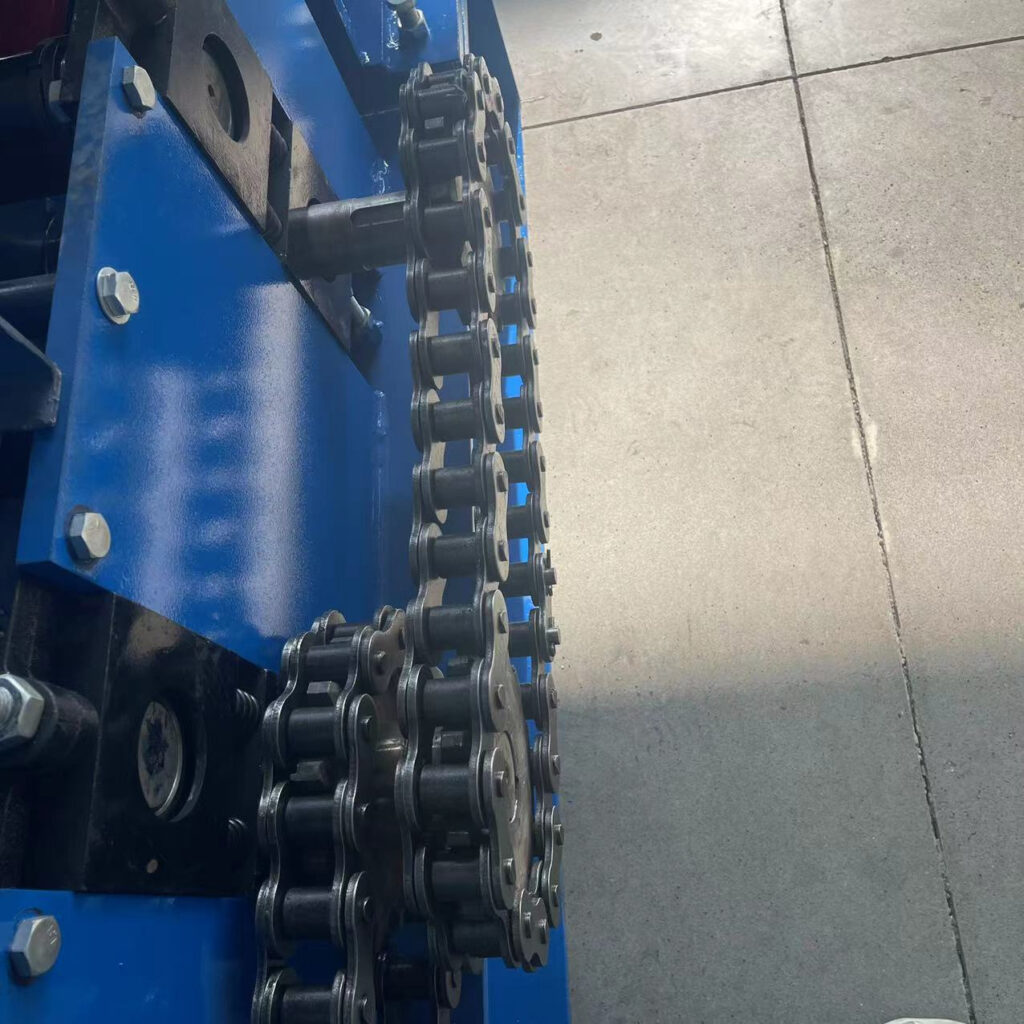

| Transmission type | Chain | ||||
| Under frame | 400H-beam | ||||

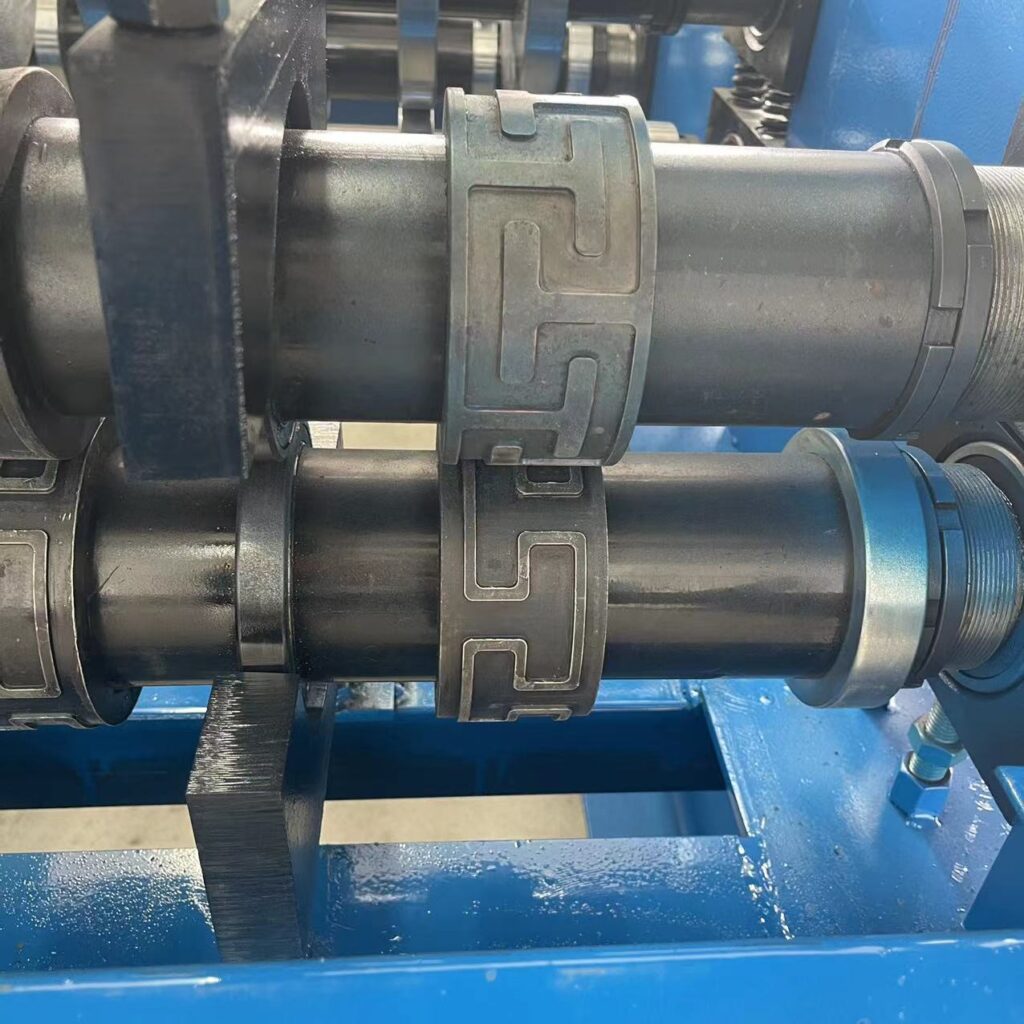

| Shaft | 26 rows layer,Diameter 90mm | ||||
| Connecting plate | 18mm | ||||
| Spacer sleeve | Using galvanized pipes for precision processing and electrostatic spraying | ||||
| Roller material | Ordinary | ||||
| Control system | PLC brand：DELTA ； Frequency brand： DELTA ； Operation brand：DELTA | ||||
| Cutting type | Slipway shear | ||||
| Thickness of sheet | 0.3-0.8mm | ||||
| Warranty period | 12 months, lifelong maintenance | ||||
