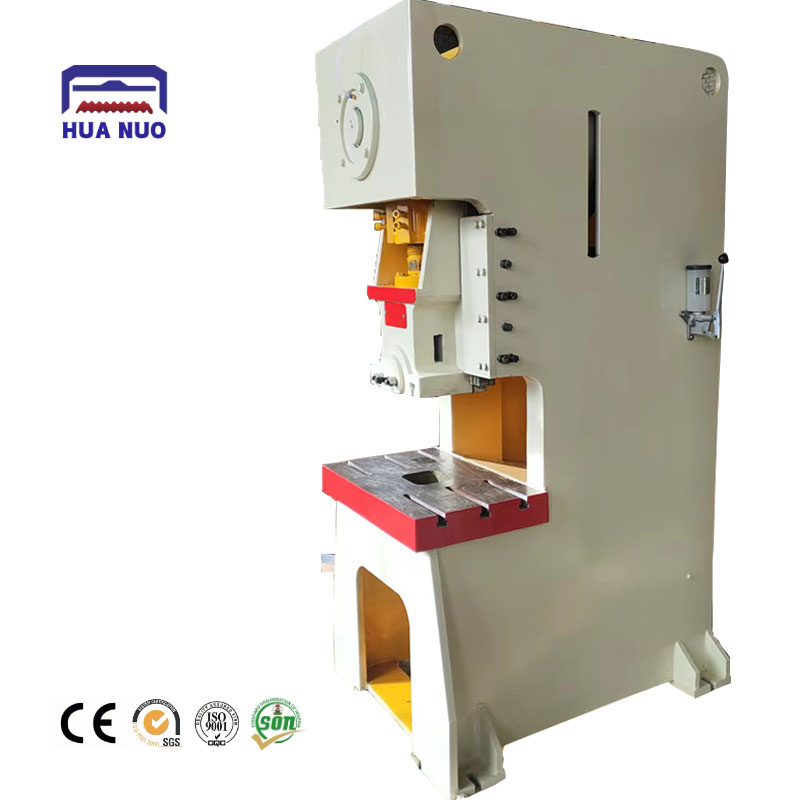

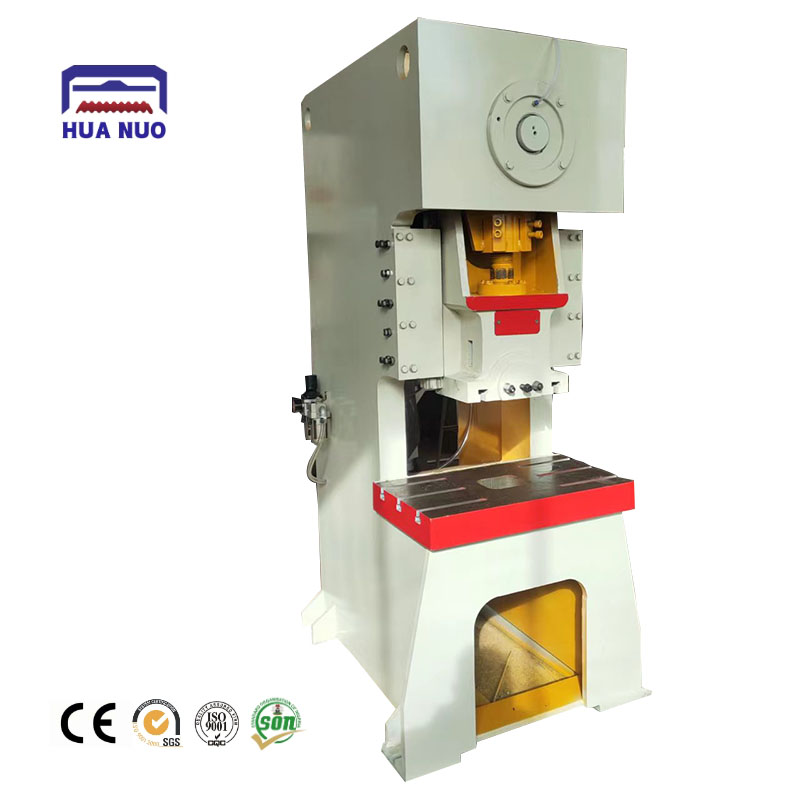

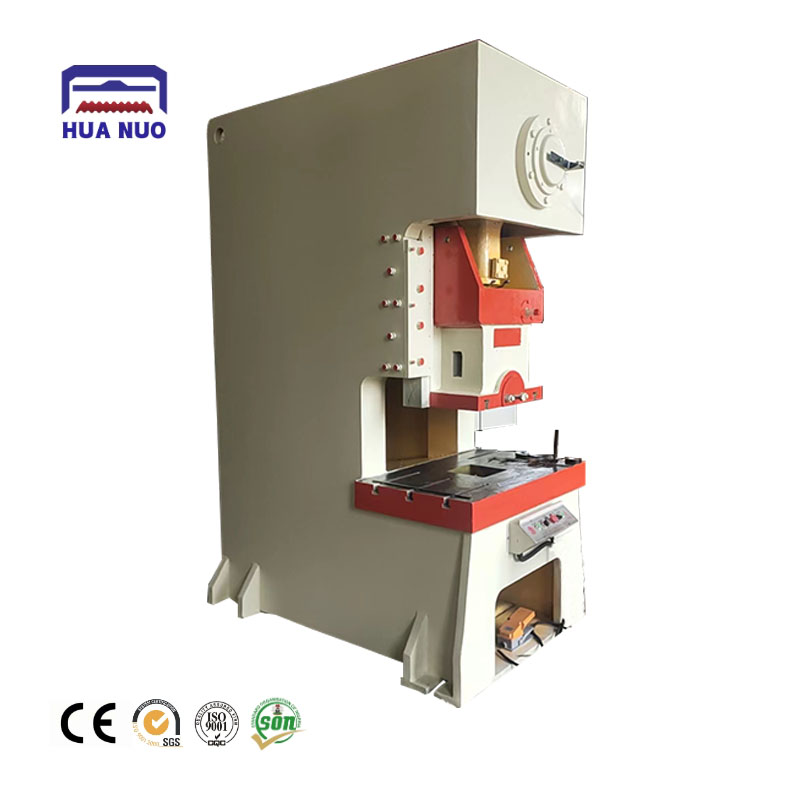

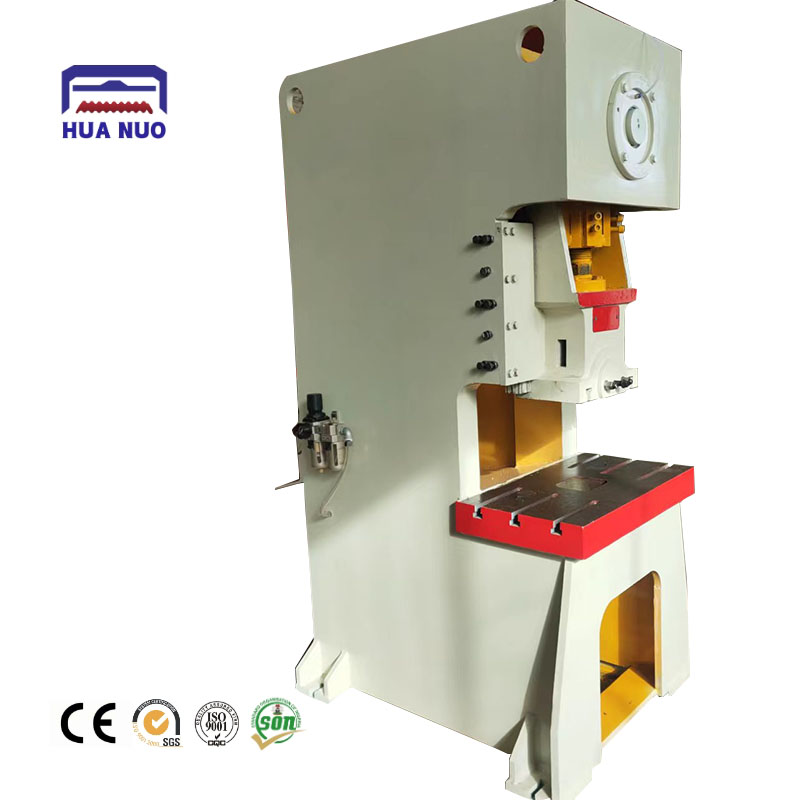

125T Punching Machine
- PRODUCT DETAIL
| Total length of equipment | 1900mm | Width | 1300mm | Height | 3300mm |
| Nominal force | 1250KN | Impact force position | 5mm | ||
| Power | Motor power：11KW | Working voltage | 3P380V50HZ | ||
| Productivity | 50 times/min | ||||
| Weight | About 9.8T | ||||
| Transmission type | Chain | ||||
| Slide Stroke | 160mm | ||||
| Worktable size | 1120mm*720mm | ||||
| Slider surface size | 520mm*620mm | ||||
| Throat depth | 370mm | ||||
| Max die set height | 370mm | ||||
| Mold height adjustment | 100mm | ||||
Free 3D profile drawing and installation profiles can be supplied.
Exclusive VIP customer files.
The urgent order with 100% full payment has the priority of delivery.
