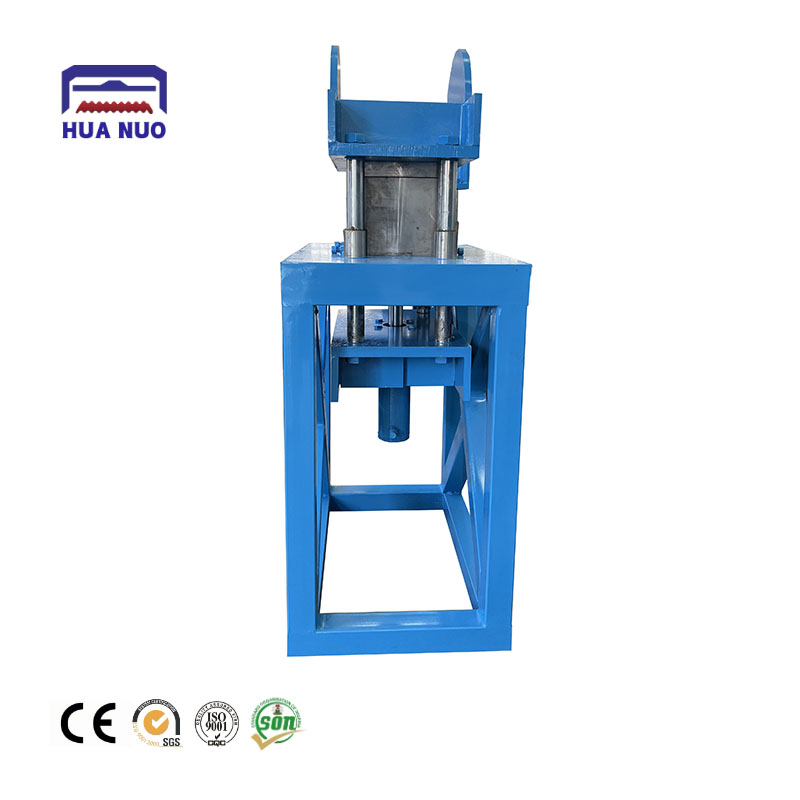

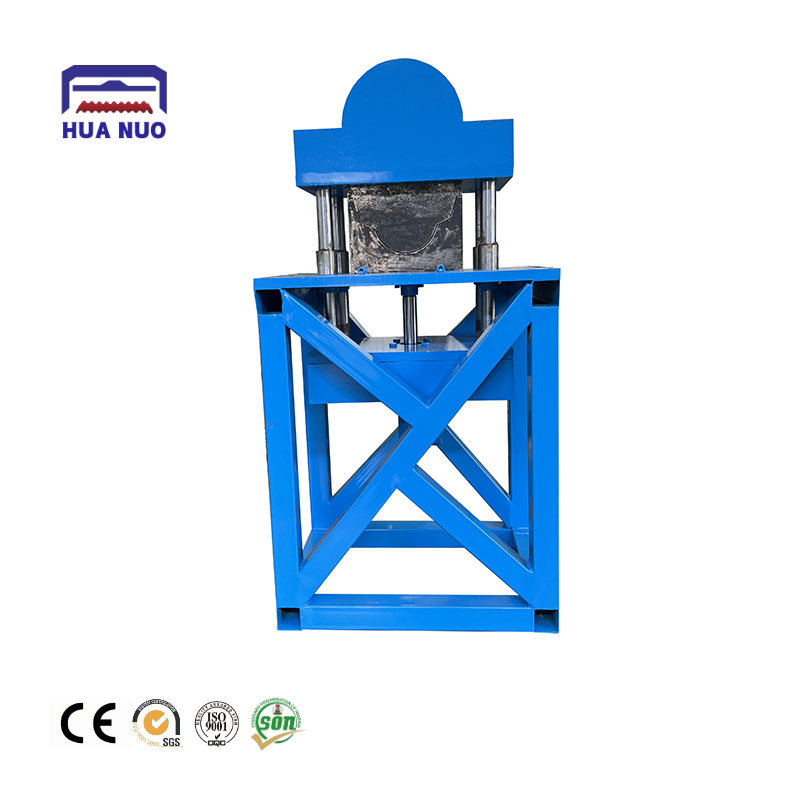

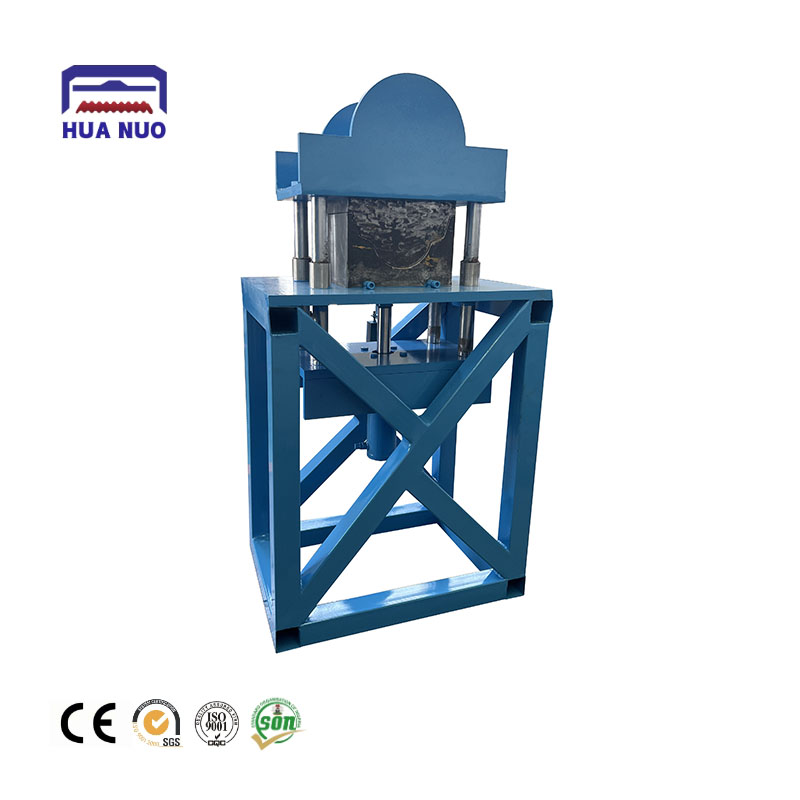

457*320 Ridge Tile Machine
- PRODUCT DETAIL
| Total length of equipment | 1000mm | Width | 1000mm | Height | 1400mm |
| Material width | 457mm or customized | Effective width | 320 mm | ||
| Power | Hydraulic power：3KW | Working voltage | 3P380V50HZ | ||
| Productivity | 0-5m/min | ||||
| Weight | About 1T | ||||
| Transmission type | Manual operation | ||||
| Under frame | 80 square tube | ||||
| Connecting plate | 20mm | ||||
| Spacer sleeve | Using galvanized pipes for precision processing and electrostatic spraying | ||||
| Roller material | Ordinary | ||||
| Cutting type | Manual operation | ||||
| Thickness of sheet | 0.3-0.8mm | ||||
| Warranty period | 12 months, lifelong maintenance | ||||
Free 3D profile drawing and installation profiles can be supplied.
Exclusive VIP customer files.
The urgent order with 100% full payment has the priority of delivery.
