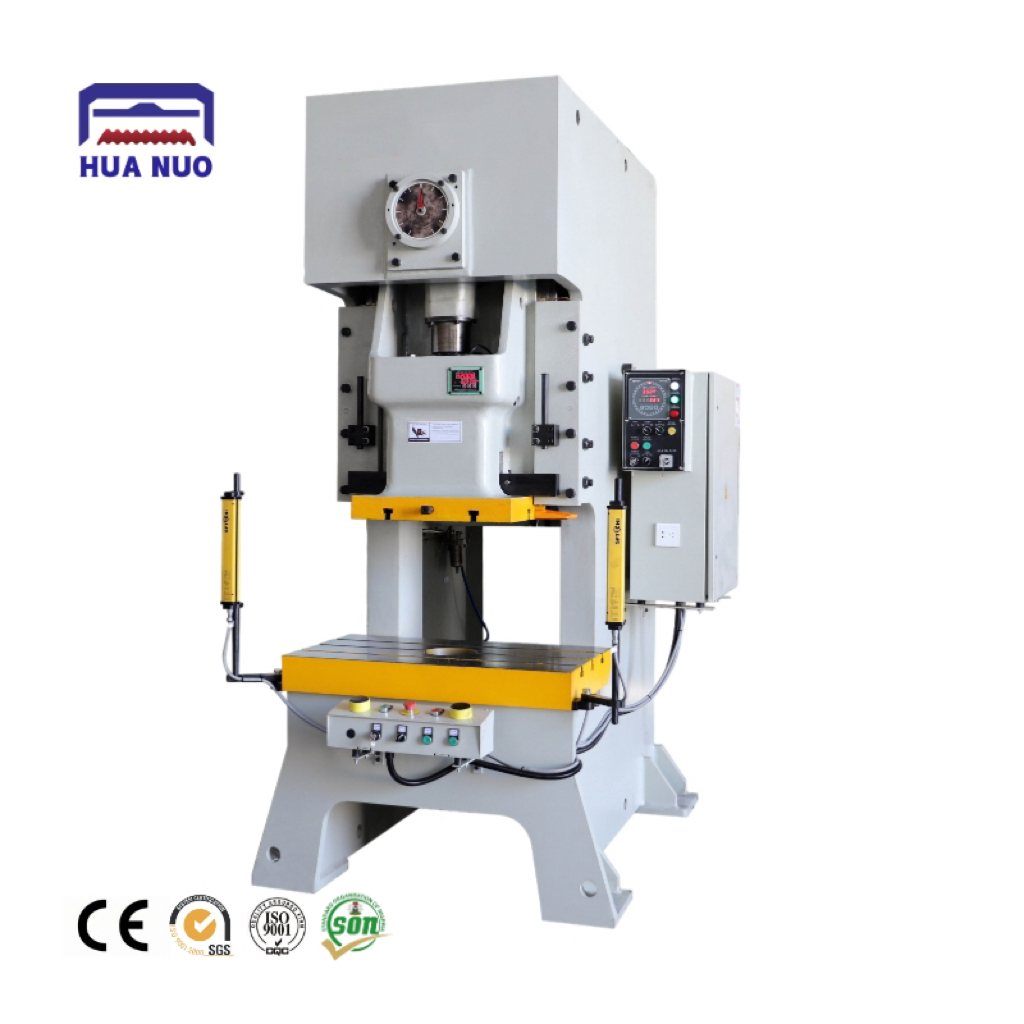

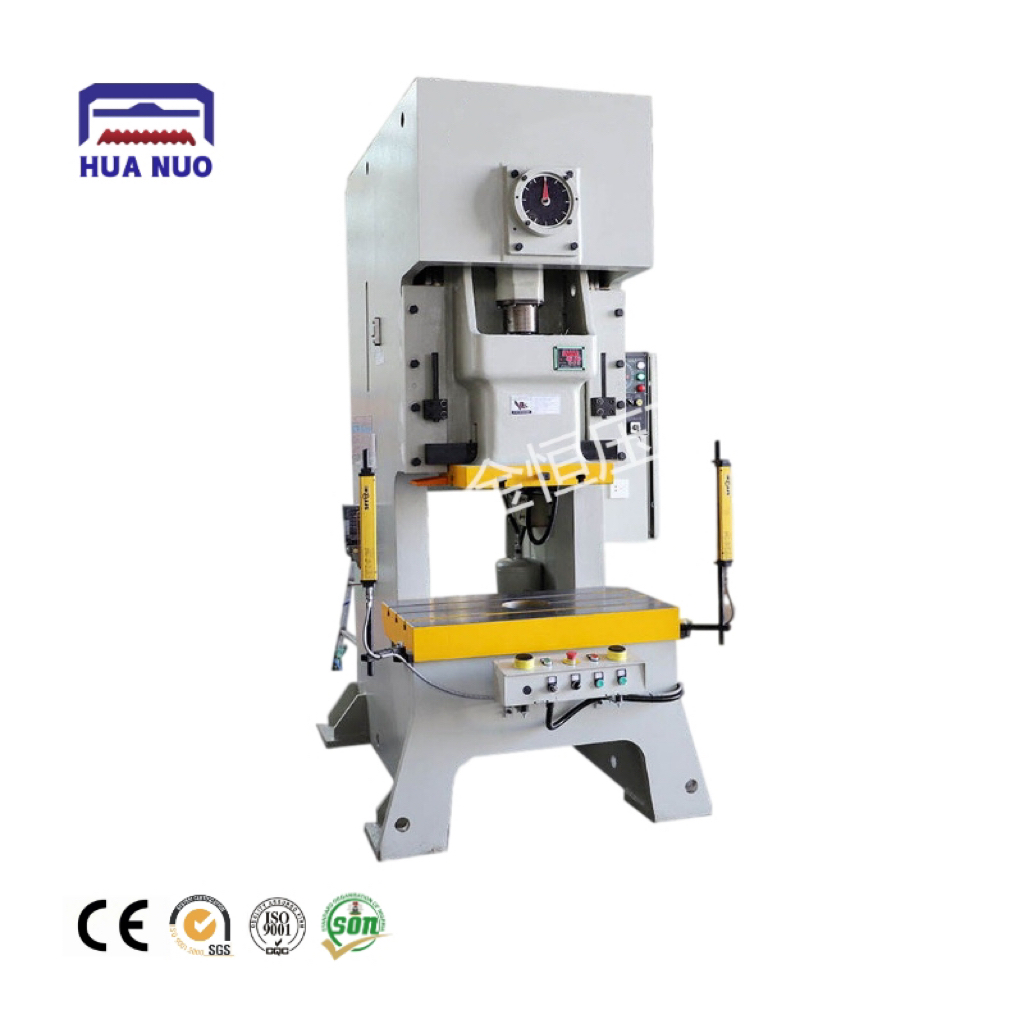

80T Punching Machine
- PRODUCT DETAIL
| Total length of equipment | 1765mm | Width | 1200mm | Height | 2725mm |
| Nominal force | 800KN | Impact force position | 5mm | ||
| Power | Motor power：5.5KW； | Working voltage | 1.5kw-7.5kw | ||
| Productivity | 60times/min | ||||
| Weight | About6.3 T | ||||
| Slide Stroke (mm) | 140mm | ||||
| Worktable size | 1000*580mm | ||||
| Slider surface size | 420*560mm | ||||
| Throat depth | 300mm | ||||
| Max die set height | 300mm | ||||
| Mold height adjustment | 80mm | ||||
Free 3D profile drawing and installation profiles can be supplied.
Exclusive VIP customer files.
The urgent order with 100% full payment has the priority of delivery.
