Total length of equipment | 5300mm | Width | 1700mm | Height | 1500mm |
Material width | 1000mm or customized | Effective width | 840-900mm |
Power | Motor power:5.5KW;Hydraulic power:5.5KW | Working voltage | 3P380V50HZ |
Productivity | 20m/min |
Weight | About 3.5T |

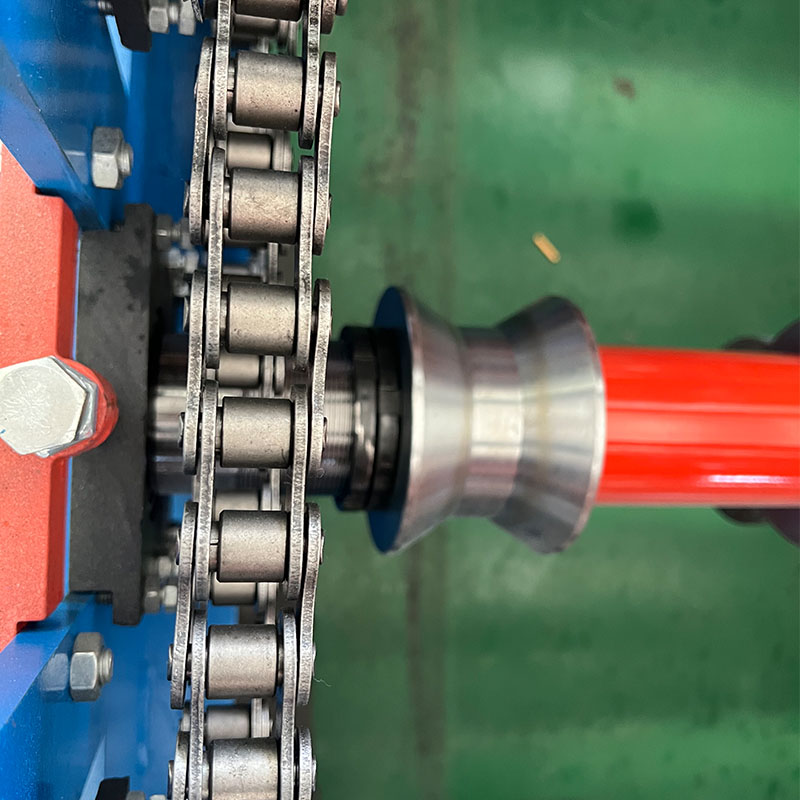

Transmission type | Chain |
Under frame | 300H-beam |
Shaft | 9-11rows layer,Diameter 70mm |
Connecting plate | 14mm |
Spacer sleeve | Using galvanized pipes for precision processing and electrostatic spraying |

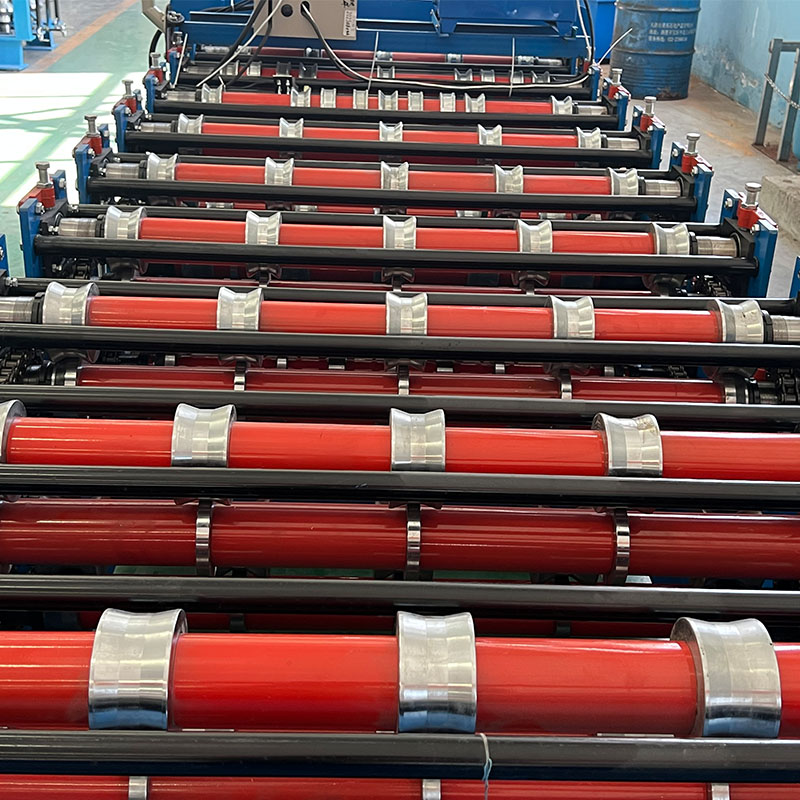

Roller material | Ordinary |

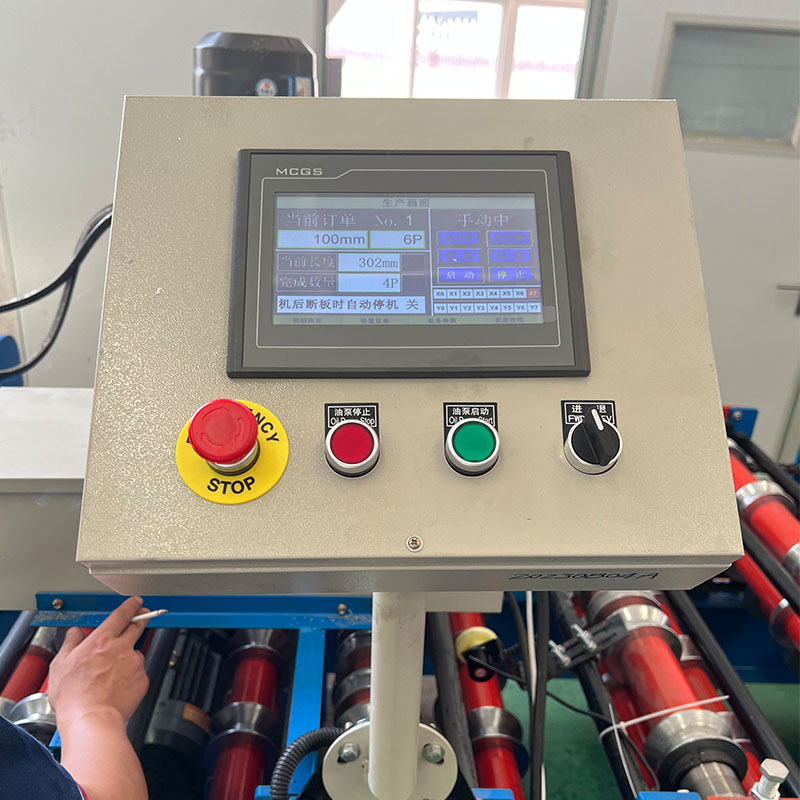

Control system | PLC brand:XinJie; Frequency:ZONCN; Operation:KunLun |
Cutting type | Guide pillar shear |
Thickness of sheet | 0.3-0.8mm |
Warranty period | 12 months, lifelong maintenance |
