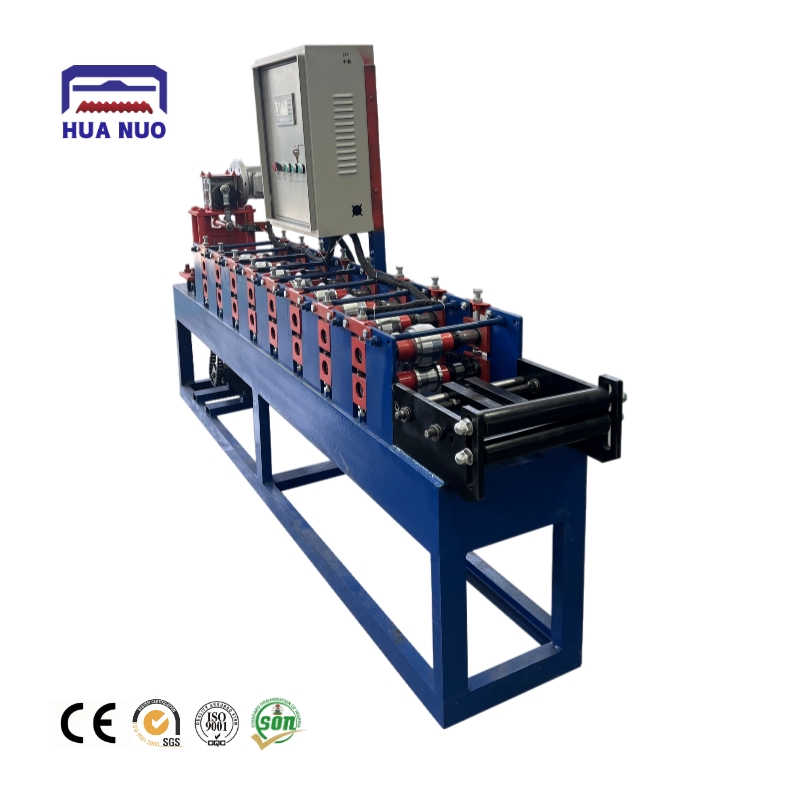

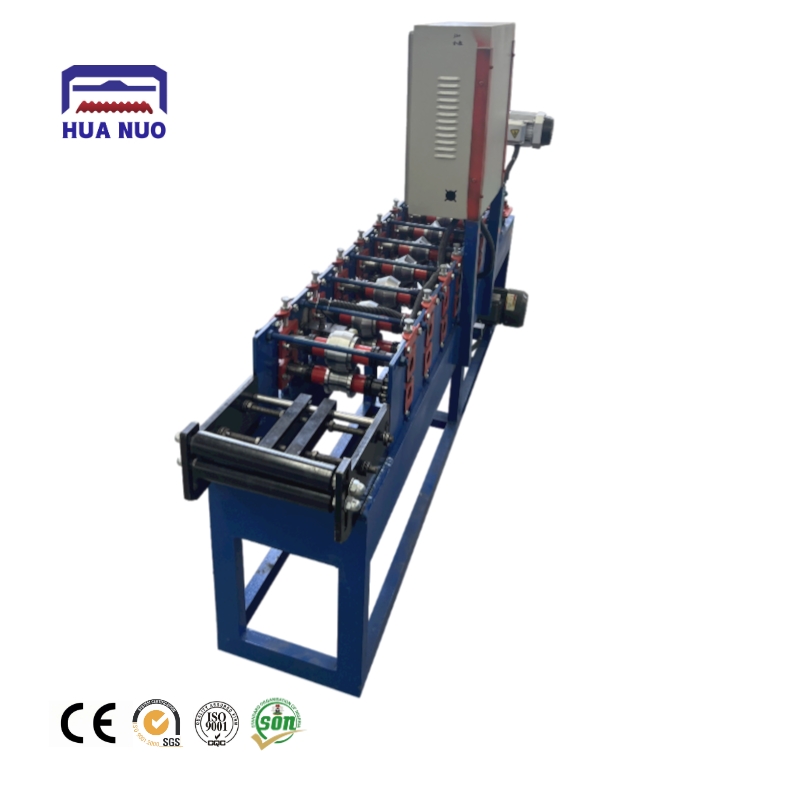

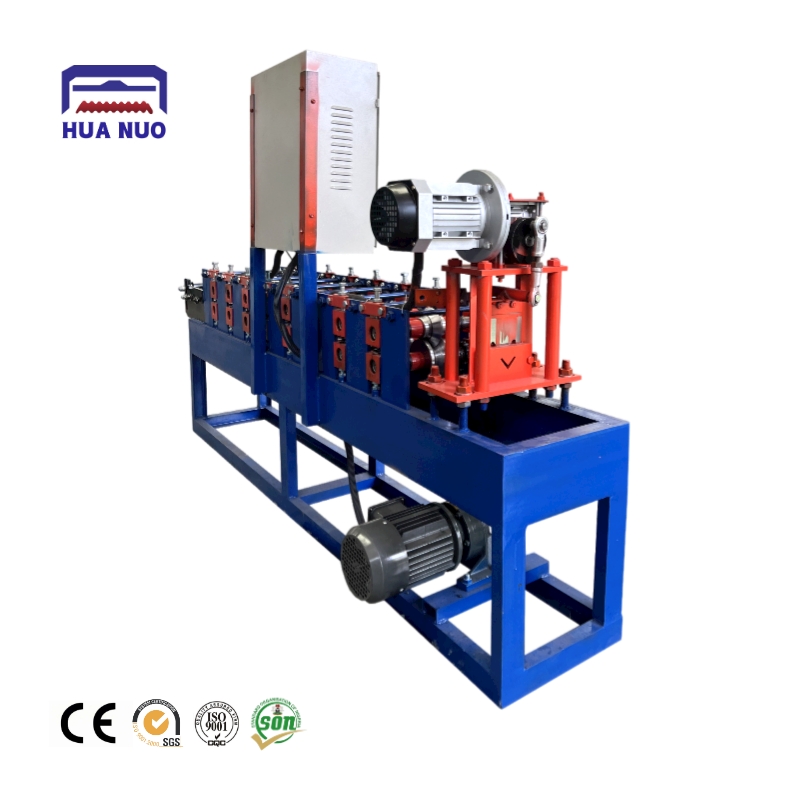

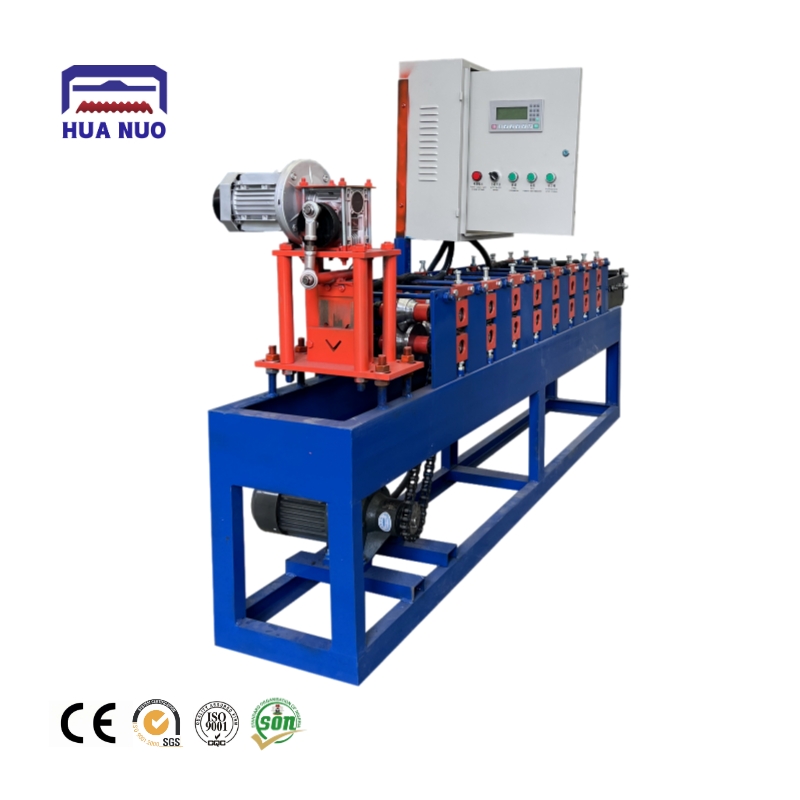

Angle Iron Machine
- PRODUCT DETAIL
| Total length of equipment | 4750mm | Width | 600mm | Height | 1400mm |
| Material width | 100mm or customized | Effective width | 100 mm | ||
| Power | Motor power：4KW*1；Hydraulic power：3KW*1 | Working voltage | 3P380V50HZ | ||
| Productivity | 0-20m/min | ||||
| Weight | About 1.6T | ||||
| Transmission type | Chain | ||||
| Under frame | 80-square tube | ||||
| Shaft | 14rows layer,Diameter 60 mm | ||||
| Connecting plate | 14mm | ||||
| Spacer sleeve | Using galvanized pipes for precision processing and electrostatic spraying | ||||
| Roller material | Ordinary | ||||
| Control system | Single-board cabinet | ||||
| Cutting type | Oblique shear | ||||
| Thickness of sheet | 0.3-0.8mm | ||||
| Warranty period | 12 months, lifelong maintenance | ||||
Free 3D profile drawing and installation profiles can be supplied.
Exclusive VIP customer files.
The urgent order with 100% full payment has the priority of delivery.
