| Total length of equipment | 10500mm | Width | 1700mm | Height | 2200mm |
| Material width | 175-500mm or customized | Effective width | 80-300mm |
| Power | Motor power：11KW；Hydraulic power：5.5KW | Working voltage | 3P380V50HZ |
| Productivity | 0-10m/min |
| Weight | About 6T |

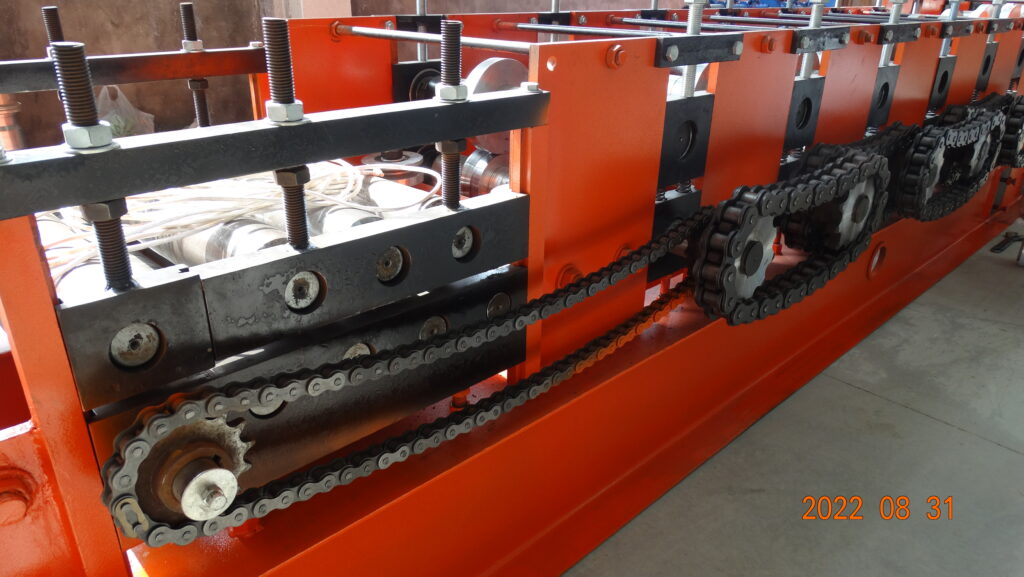

| Transmission type | Chain |
| Under frame | 350H-beam |
| Shaft | 12rows layer,Diameter 80mm |
| Connecting plate | 18mm |
| Spacer sleeve | Using galvanized pipes for precision processing and electrostatic spraying |
| Roller material | Ordinary |
| Control system | PLC brand：DELTA ； Frequency brand：DELTA ； Operation brand：DELTA |
| Cutting type | Electroless cutting |
| Thickness of sheet | 0.3-0.8mm |
| Warranty period | 12 months, lifelong maintenance |
Free 3D profile drawing and installation profiles can be supplied.
Exclusive VIP customer files.
The urgent order with 100% full payment has the priority of delivery.
