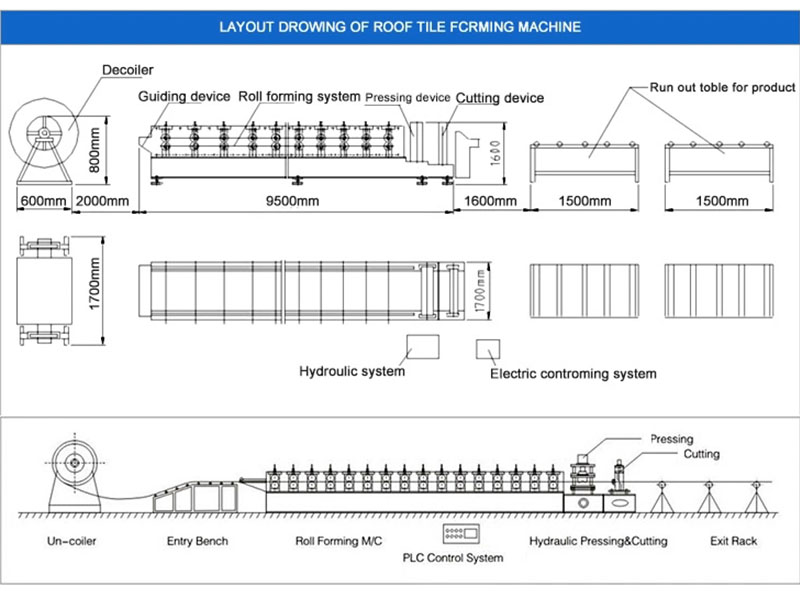

| Total length of equipment | 6100mm | Width | 1700mm | Height | 1700mm |
| Material width | 1000 mm or customized | Effective width | 1000 mm | ||
| Power | Motor power：5.5KW；Hydraulic power：5.5KW | Working voltage | 3P380V50HZ | ||
| Productivity | 0-15m/min | ||||
| Weight | About 2.5T | ||||
| Transmission type | Chain | ||||
| Under frame | 350H-beam | ||||

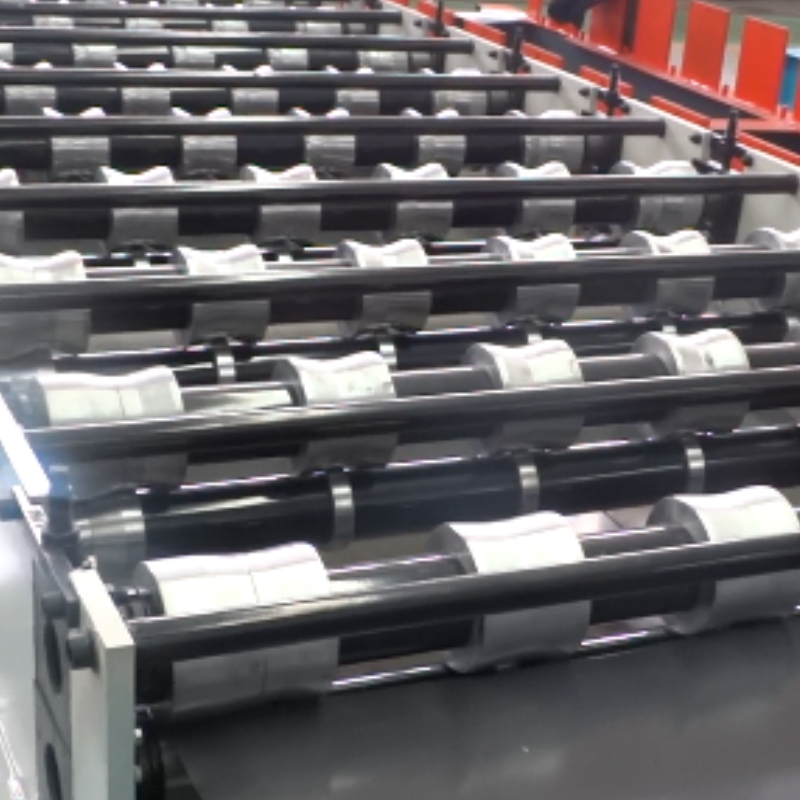

| Shaft | 13rows layer,Diameter 70 mm | ||||
| Connecting plate | 14mm | ||||
| Spacer sleeve | Using galvanized pipes for precision processing and electrostatic spraying | ||||
| Roller material | Ordinary | ||||
| Control system | PLC brand：Delta ; Frequency brand：Delta ; Operation brand：KunLun | ||||

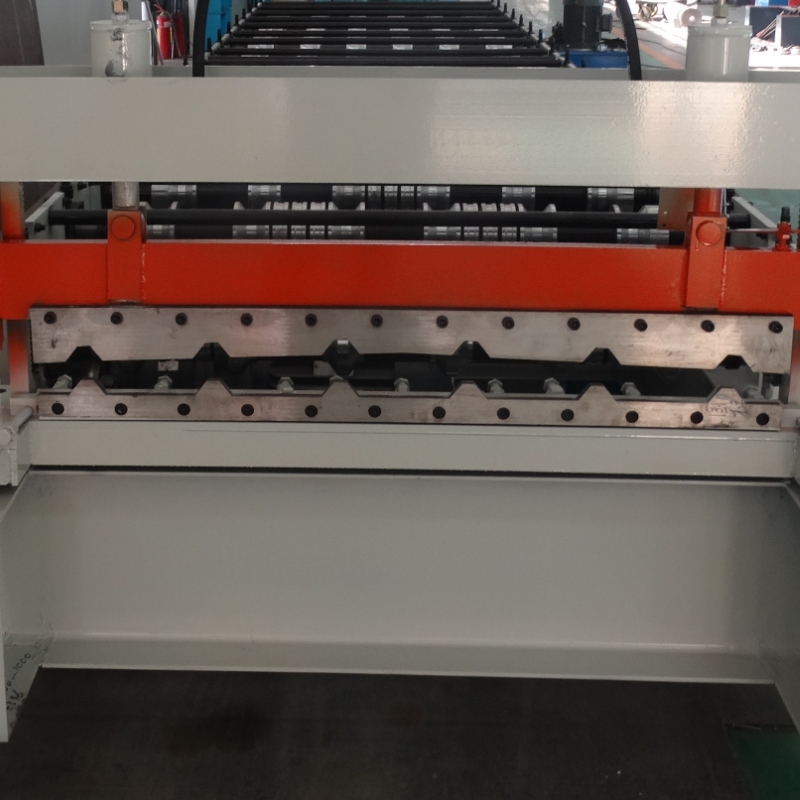

| Cutting type | Guide pillar shear | ||||
| Thickness of sheet | 0.3-0.8mm | ||||
| Warranty period | 12 months, lifelong maintenance | ||||
